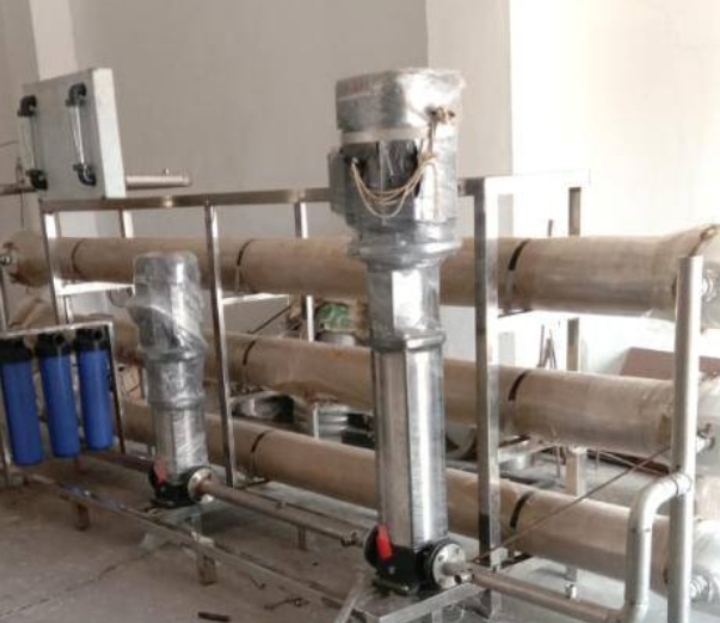

Reverse Osmosis Plant

Reverse Osmosis Plant
Send Inquiry
Product Code : VPROP
Brand Name : VPAC
Price And Quantity
  • Minimum Order Quantity
  • 1 Set/Sets
  • Price Range
  • 125000.00 - 2500000.00 INR
  • Price
  • 125000 INR
Product Specifications
  • Type
  • Filling Machine
  • Material
  • SS 304
  • Feature
  • Food, Beverage
  • Auxiliary Packaging Machine Type
  • Sterilizer
  • Capacity
  • 200-3000 Kg/hr
  • Computerized
  • Yes
  • Automatic Grade
  • Automatic
  • Control System
  • PLC Control
  • Drive Type
  • Electric
  • Color
  • Silver
  • Warranty
  • 1 Year
Product Description

SCHEME OF TREATMENT

Raw water after the process of oxidation is passed through SS multigrade sand bed pressure filter, that removes suspended impurities as well as precipitate of minerals, like manganese and iron.

ACTIVATED CARBON FILTER

Water stream from coarse filter passes through a SS Activated carbon filter, which gives filtered water free from any odor, color and residual chlorine. Pretreated water is desalinated by RO with molecular rejection of dissolved solids in order to maintain needed level of minerals or TDS. In the process of molecular rejection, ions that form hardness, like calcium and magnesium get deposited over membrane surface as a scale. This prevents scale formation, the R.O. feed is softened by converting calcium and magnesium ions.

PRETREATMENT FOR REVERSE OSMOSIS STREAM

A food grade anti scalent dozing is executed for water softening

FINE FILTRATION BY MULTI MICRON CARTRIDGES FILTER

By pretreatment process, water becomes free from undissolved solids, organic matters, manganese and iron. It removes upto 20 microns by particle filtration. The ideal SDI of RO feed water must be below 3 based on the porosity below 0.0005 microns and other characteristics of RO membranes. It is possible only if the water is filtered properly by micron cartridges of below 5 rating. For achieving an ideal SDI level, we have provided multi micron cartridges in SS housing. The selected membranes are of such porosity and molecular weight cut off that it removes everything in blending stream purification, except minerals. It does not trigger molecular rejection of inorganic dissolved solids or minerals. This is beneficial because hardness does not precipitate over membranes, water softening plant is not required and blending stream has to be finely filtered before ultra filtration membranes feed.

DESALINATION BY RO

RO is based on the technology that efficiently removes all dissolved solids by molecular rejection. The process starts with pretreatment of water, pretreated water is pumped membrane and feed pressure is enhanced above osmotic pressure. It results in migration of pure water from the concentrate to produce sterilized desalinated water. The system is designed on the basis of raw water analysis, treated water quality and recovery. Customers can get fully automatic RO block with synchronized logic control and instruments to on-line measure parameters, ensuring efficient and safe working and treated water quality control.

Technical Specifications

RO Capacity (LPH)

1000-2000

Automation Grade

Automatic, Semi-Automatic

Capacity (litres per hour)

0-200 , 1000-2000 , 500-1000 , 0-200

Operation Mode

Automatic, Manual, Semi-Automatic, Automatic

Types Of Machines

Activated Carbon Filter , Multi-Grade Filter, Reverse Osmosis Unit, UV Sterilizer

Brand/Make

Vpack

Design

Standard

Automatic Grade

Automatic, Semi-Automatic

Reverse Osmosis Systems Repair and Maintenance Required

No

RO Capacity (Liter/hour)

0-200 (Liter/hour), 1000-2000 (Liter/hour), 200-500 (Liter/hour), 2000-3000 (Liter/hour), 500-1000, >3000

Chiller Cooling Capacity (Tons)

0.5 ton, 1 ton, 1.5 ton

Plant Application

Domestic RO Plant, Industrial RO Plant, Institutional RO Plant

Number of Membranes in RO

2

Installation/Civil Work

Required

Material of Construction

FRP, SS Powder coating

Plant Accessories

Chlorinator, Ozonator

Max Water Recovery Rate

50-55 %, 55-60 %

Number of Filtration Passes

2, 3, 4, 5

Installation Type

Completes Civil work with Installation

Brand

VPACK

Trade Information
  • FOB Port
  • EXTRA ASACTUAL
  • Payment Terms
  • Cheque, Cash on Delivery (COD)
  • Supply Ability
  • 1 Per Week
  • Delivery Time
  • 2 Week
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • Wooden
  • Main Export Market(s)
  • Middle East, Asia
  • Main Domestic Market
  • All India
  • Certifications
  • 9001-2015 Certified Company
